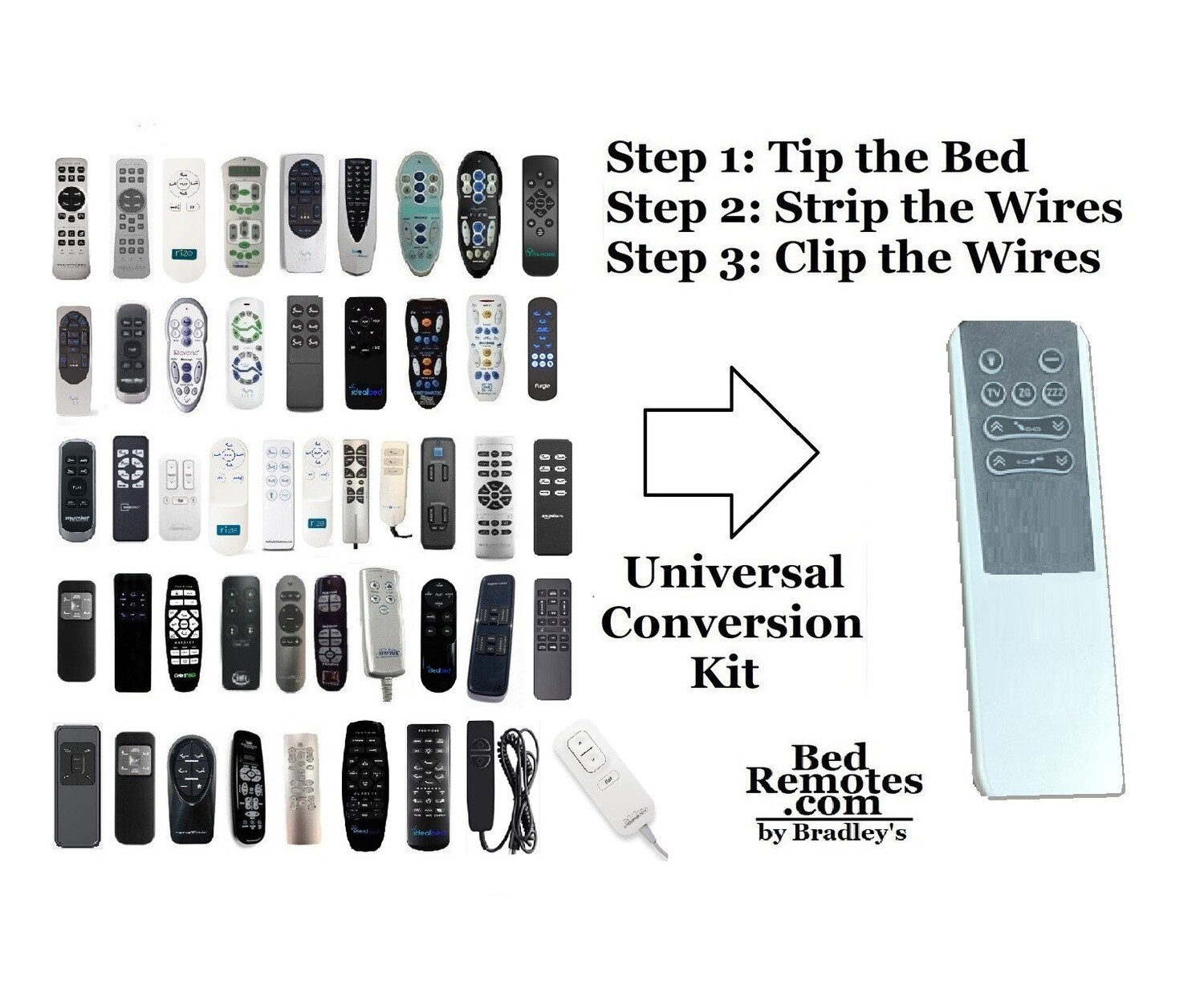

This universal kit converts old bed base control boxes with an easy-to-install 3 step process and includes a new wireless remote to control your bed base with advanced features like presets, one touch flat, and a flashlight. Used to replace a lost or broken remote when there are no more replacements available or in budget or to upgrade a basic remote with only a few buttons. Note, uncertain, adjustable beds, the one touch presets will not operate like normal. Please reach out to us with any questions before ordering regarding presets.

This kit includes all the wiring and harnesses needed to make your conversion. Total installation should take no more than 5 minutes but it does require tipping the bed on its side. If you want to ensure that this model is compatible, look at your actuator motors under the bed and verify that they are 24V or 29V. (We have converted several bases without issue and almost all of the beds we have looked at that have been made after 2005 use the 24V voltage, but ultimately we have not tested every bed on the market so cutting your wires is at your own discretion. You can however splice them back together if the conversion does not work so ultimately there is not a huge risk.) You can view the video we recorded showing install at www.bit.ly/BedKit (Case Sensitive)

Kit Includes:

1) Conversion Control Box with Wire Harnesses and a Power Supply Cable/Transformer Box - Simply click in the wires once cut and plug in the unit!

1) Wireless 8 Button (up, down head and foot, both up and down (same as flat), flashlight) Remote Control with flashlight and backlighting- Simply plug in the kit after it’s installed and the remote will work. Each remote uses three AAA batteries (included since we program this prior to shipping). You can only have one remote paired with one box at a time. If you want to buy a 2nd remote to use as a backup, we sell them for $70 each.

1) Zip Tie Cable to secure the new boxes under the bed

Recommended Items to have prior to install:

1) Wire Stripper or Pair of Scissors (we recommend a good but inexpensive pair of strippers as it will make the stripping process a lot easier and quicker. We bought a deluxe stripper shown in our video on amazon for $16. Wire Stripper, knoweasy Wire Stripper Tool with Cutter and 2 in 1 Wire Stripping Tool Works for Electronic,Electric,Automotive from 32 to 7 AWG - Amazon.com

1) Surge Protector. This can be a power strip or single box, but its important to make sure the words "Surge Protector" or some variant are on the unit. Usually you can buy both at walmart but the power strip without surge protection is a dollar or two less. Here is a combo strip/protector for $10 on Amazon: https://www.amazon.com/dp/B08466BVJV?ref_=cm_sw_r_...

We also offer this remote and control box with massage buttons and hookups for $50 more if you had that feature on your old bed and wanted to use massage here:

https://www.adjustablebedremotes.com/#!/13-Button-Remote-Universal-Conversion-Kit-for-Adjustable-Beds-Most-newer-Beds-Your-Motors-must-be-24v-29V-Used-for-a-lost-broken-discon-remote-Head-Up-Down-&-Foot-Up-Down-3-Presets-Wave-Massage/p/471655154/category=0

or a basic version without presets here:

6 Button BASIC MODEL Remote/Universal Conversion Kit for Adjustable Beds (Your Motors must be 24v-29v) -Used for a lost remote. Head Up/Down Foot Up/Down. Backlit- White Version Remote

And finally, it’s important to note that one control box is required per bed. If you have a split king which is essentially two bases pushed up side-by-side, you would need two of these kits if you no longer have any working remote.

#ukit
