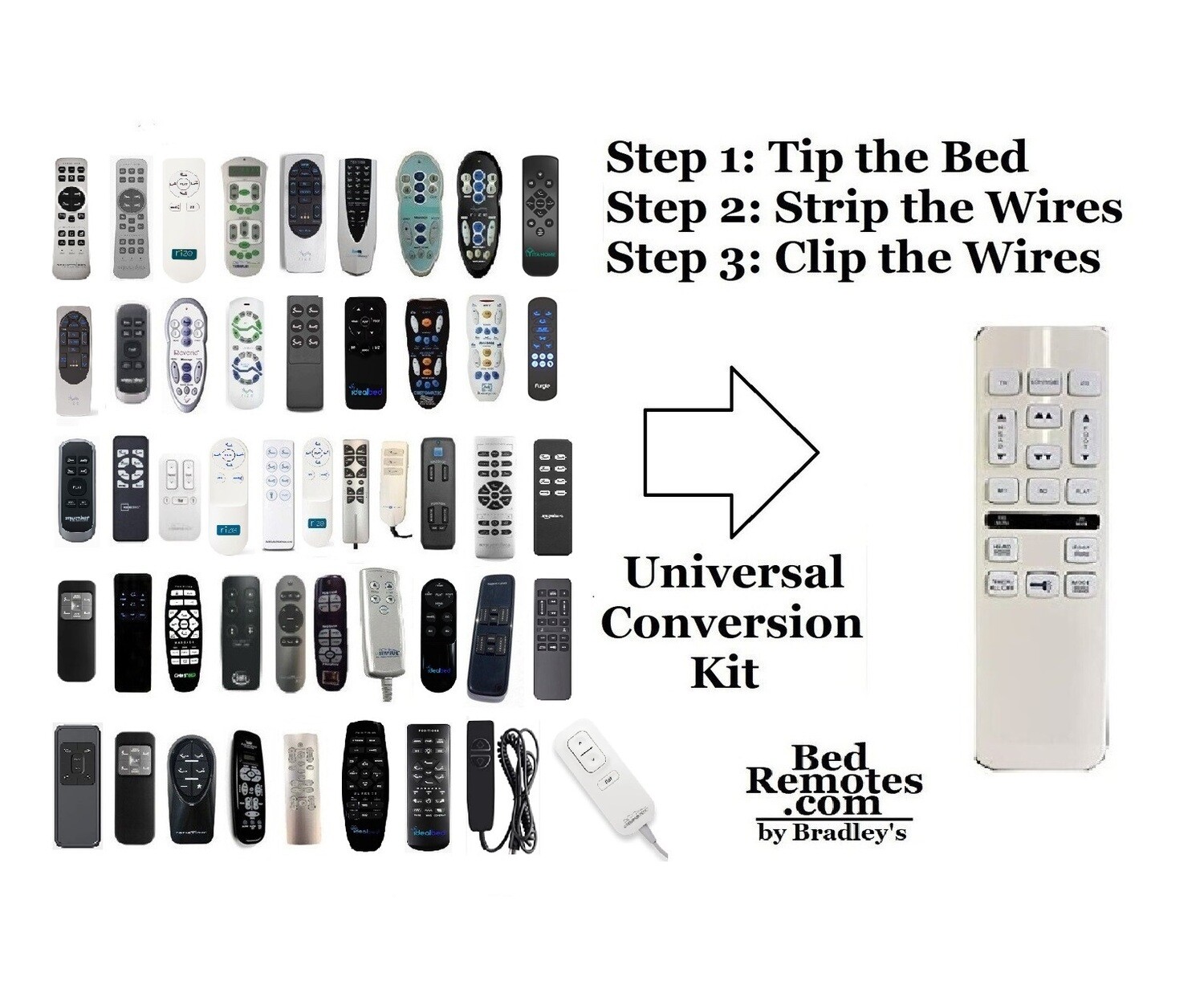

This universal kit converts old bed base control boxes with an easy-to-install 3 step process and includes a new wireless remote to control your bed base with advanced features like backlit lighting. Note, this model does not let you operate presets. We feature of different version of the same kit for the same price that would operate presets, but there are some limit point issues for certain seems like the Leggett & Platt prodigy

This kit includes all the wiring and harnesses needed to make your conversion. Total installation should take no more than 5 minutes but it does require tipping the bed on its side. If you want to ensure that this model is compatible, look at your actuator motors under the bed and verify that they are 24V or 29V. (We have converted several bases without issue and almost all of the beds we have looked at that have been made after 2005 use the 24V voltage, but ultimately we have not tested every bed on the market so cutting your wires is at your own discretion. You can however splice them back together if the conversion does not work so ultimately there is not a huge risk.) You can view the video we recorded showing install at www.bit.ly/BedKit (Case Sensitive)

Kit Includes:

1) Conversion Control Box with Wire Harnesses and a Power Supply Cable/Transformer Box - Simply click in the wires once cut and plug in the unit!

1) Wireless 8 Button (up, down head and foot, both up and down (same as flat), flashlight) Remote Control with flashlight and backlighting- Simply plug in the kit after it’s installed and the remote will work. Each remote uses three AAA batteries (included since we program this prior to shipping). You can only have one remote paired with one box at a time. If you want to buy a 2nd remote to use as a backup, we sell them for $70 each.

1) Zip Tie Cable to secure the new boxes under the bed

Recommended Items to have prior to install:

1) Wire Stripper or Pair of Scissors (we recommend a good but inexpensive pair of strippers as it will make the stripping process a lot easier and quicker. We bought a deluxe stripper shown in our video on amazon for $16. Wire Stripper, knoweasy Wire Stripper Tool with Cutter and 2 in 1 Wire Stripping Tool Works for Electronic,Electric,Automotive from 32 to 7 AWG - Amazon.com

1) Surge Protector. This can be a power strip or single box, but its important to make sure the words "Surge Protector" or some variant are on the unit. Usually you can buy both at walmart but the power strip without surge protection is a dollar or two less. Here is a combo strip/protector for $10 on Amazon: https://www.amazon.com/dp/B08466BVJV?ref_=cm_sw_r_...

We also offer this remote and control box without the massage buttons and hookups for $80 less if you dont have massage motors on your base or if you don't use massage or wanted to save money:

1) 9 Button Backlit Remote/Universal Conversion Kit for Adjustable Beds (Most newer Beds- Your Motors must be 24v-29V) -Used for a lost/broken/discontinued remote. Head Up/Down & Foot Up/Down 3 Preset (adjustablebedremotes.com)

as well as a few specialty kits that can give you features such as bluetooth/wifi/app control as well as the ability to pair two remotes to one box as the basic or deluxe kits only allow one remote to be paired at a time.

Just contact us at orders@saltlakemattress.com or 866-448-6879

And finally, it’s important to note that one control box is required per bed. If you have a split king which is essentially two bases pushed up side-by-side, you would need two of these kits if you no longer have any working remote.
