This universal kit converts old generation 4 pin motors on wireless bed base control boxes and includes a new wireless remote to control your bed base with advanced features like presets, one touch flat, and a flashlight. Used to replace a lost or broken remote when there are no more replacements available or in budget or to upgrade a basic remote with only a few buttons.

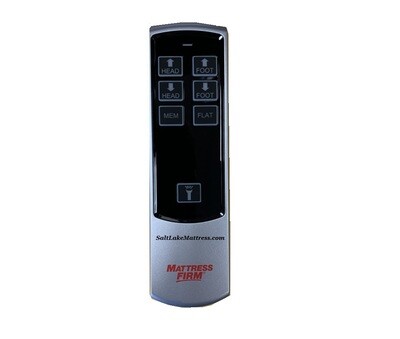

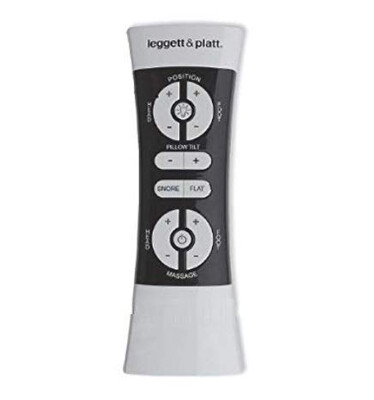

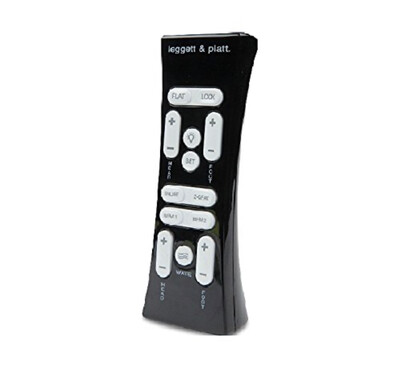

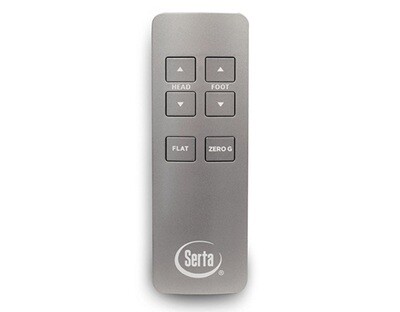

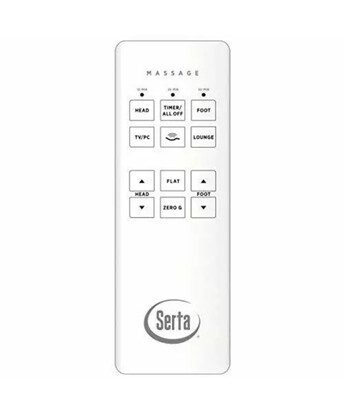

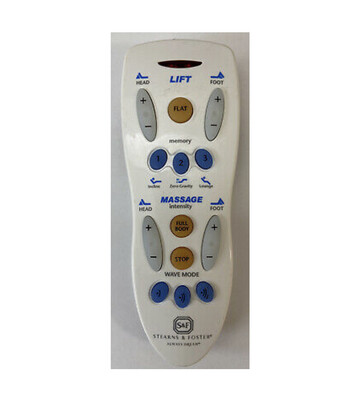

This kit includes all the wiring and ports needed to make your conversion. Simply unplug your two motors (head and foot) from the existing control box under your bed and plug them into our new unit. All of the remotes showed above used control boxes with four pin connection ports. As long as your remote matches our original picture, this kit will work. (See above picture). This kit does not operate massage although we sell that option for an upgrade.

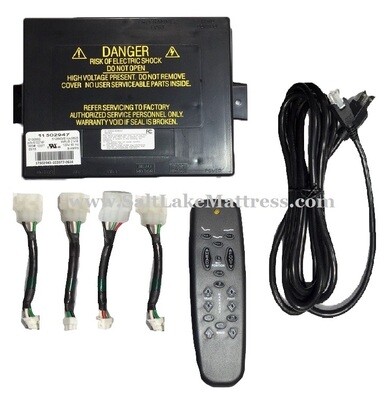

Total installation should take no more than 5 minutes but it does require tipping the bed on its side or sliding under the bed to secure the new unit once plugged in. Kit Includes:

1) Conversion Control Box and a Power Supply Cable/Transformer Box - Simply plug in the old cords into our new box

1) Wireless 9 Button Remote Control with flashlight and backlighting (The massage buttons will not work on this unit but all others will! If you want to have massage functionality, you must upgrade to our other unit)- Simply plug in the kit after it’s installed and the remote will work. Each remote uses three AAA batteries (included since we program this prior to shipping.). You can only have one remote paired with one box at a time or if you reach out to us we can pair one remote to two boxes if you want to synchronize your king split base. If you want to buy a 2nd remote to use as a backup, we sell them for $70 each.

2) Zip Tie Cables to secure the new boxes under the bed

We recommend buying a Surge Protector before install if you don’t already have your bed plugged in. This can be a power strip or single box, but its important to make sure the words "Surge Protector" or some variant are on the unit. Usually you can buy both at walmart but the power strip without surge protection is a dollar or two less. Here is a combo strip/protector for $10 on Amazon: https://www.amazon.com/dp/B08466BVJV?ref_=cm_sw_r_...

We also offer this kit with two massage ports to allow you to access your massage and intensity/pulse features for $349:

https://www.adjustablebedremotes.com/#!/Remote-Conversion-Kit-Deluxe-Model-for-Sealy-Reflection-4-and-Stearns-Reflections-Reflexion-7-Replaces-a-lost-broken-remote-13-Button-Backlit-Controls-Movement-Massage-Presets/p/471642455

Also, you can contact us at orders@saltlakemattress.com or 866-448-6879 (text is great) with questions

And finally, it’s important to note that one control box is required per bed. If you have a split king which is essentially two bases pushed up side-by-side, you would need two of these kits if you no longer have any working remote.
