This universal kit converts old bed base control boxes with an easy-to-install 3 step process and includes a new wireless remote to control your bed base with advanced features like presets, one touch flat, and massage with three intensities and wave modes… even if your old bed did not have those features! (Note.. if your old bed did not have massage, that will not be an option on this new one either). Used to replace a lost or broken remote when there are no more replacements available or in budget or to upgrade a basic remote with only a few buttons.

This kit includes all the wiring and harnesses needed to make your conversion. Total installation should take no more than 5 minutes but it does require tipping the bed on its side. If you want to ensure that this model is compatible, look at your actuator motors under the bed and verify that they are 24V or 29V. (We have converted several bases without issue and almost all of the beds we have looked at that have been made after 2005 use the 24V voltage, but ultimately we have not tested every bed on the market so cutting your wires is at your own discretion. You can however splice them back together if the conversion does not work so ultimately there is not a huge risk.)

We send detailed instructions and even have uploaded a video on youtube showing this process here: Universal Bed Remote Kit by BedRemotes.com. Order at bit.ly/3jKHM4R. Tempur-Pedic Ergo Premier Demo - YouTube. We include a QR code for this video as well with your instruction paper. There are three steps to installing this unit. First, tip your bed on its side and unplug it from the wall. Second, cut the cords of the head and foot actuator motor and strip the forward and reverse wires and repeat for each massage motor (see our video). Third, slide each wire into its corresponding hole in our harness and click down the clamp with your thumb. Then secure the boxes to your frame with our zip cables we provide, plug the new power cord in, and you’re good to go!

Kit Includes:

1) Conversion Control Box with Wire Harnesses and a Power Supply Cable/Transformer Box - Simply click in the wires once cut and plug in the unit!

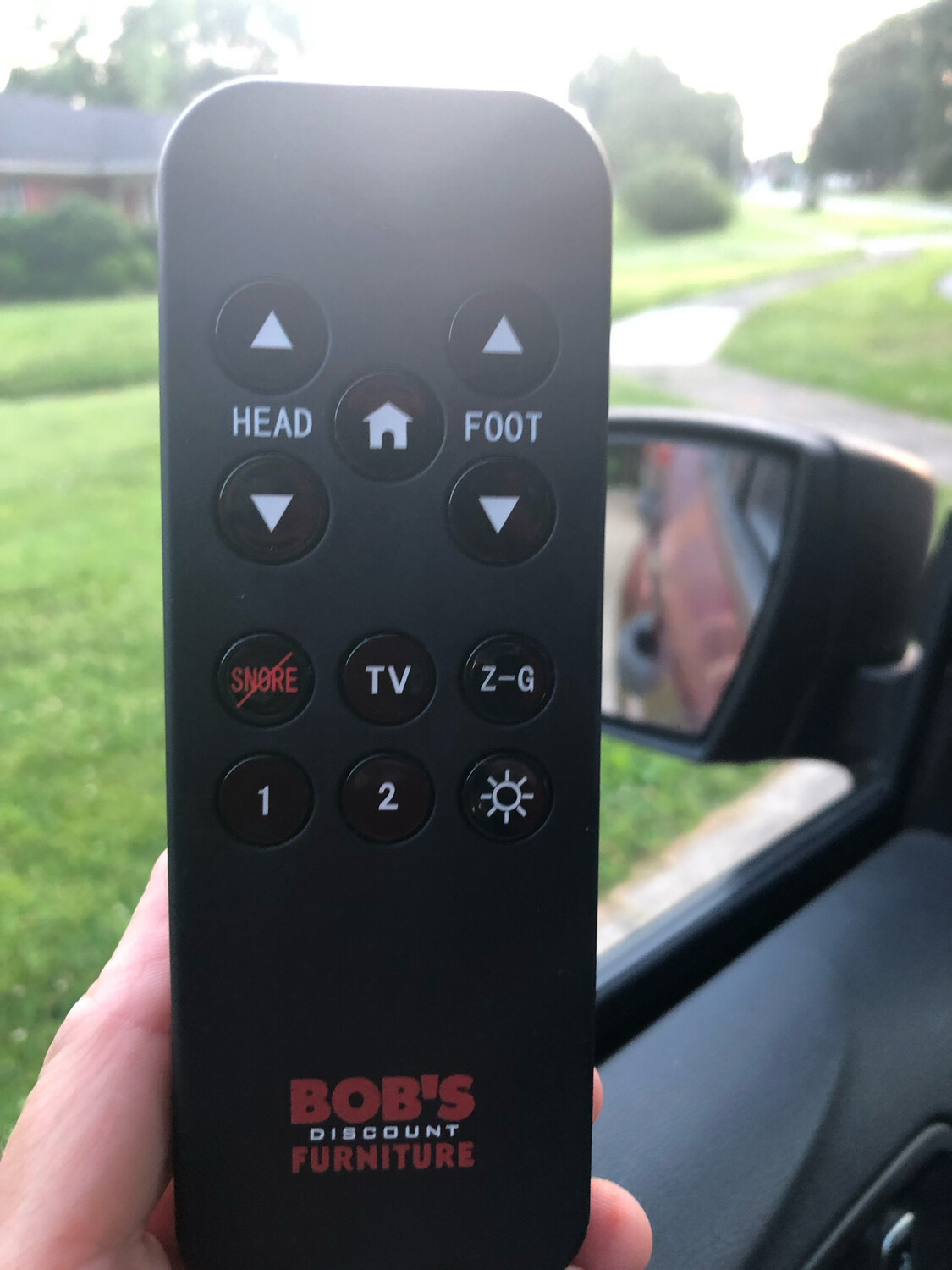

1) Wireless 9 Button Remote Control with flashlight and backlighting- Simply plug in the kit after it’s installed and the remote will work. Each remote uses three AAA batteries (included since we program this prior to shipping). You can only have one remote paired with one box at a time. If you want to buy a 2nd remote to use as a backup, we sell them for $70 each.

2) Zip Tie Cables to secure the new boxes under the bed

Recommended Items to have prior to install:

1) Wire Stripper or Pair of Scissors (we recommend a good but inexpensive pair of strippers as it will make the stripping process a lot easier and quicker. Here is a pair on Amazon that we bought for $6 and use in our instruction video): https://www.amazon.com/gp/aw/d/B06X9875Z7?psc=1&ref=ppx_pop_mob_b_asin_title

1) Surge Protector. This can be a power strip or single box, but its important to make sure the words "Surge Protector" or some variant are on the unit. Usually you can buy both at walmart but the power strip without surge protection is a dollar or two less. Here is a combo strip/protector for $10 on Amazon: https://www.amazon.com/dp/B08466BVJV?ref_=cm_sw_r_...

We also offer this remote and control box with a basic four button version for $179 here:

4 Button Remote & Universal Conversion Kit for Old Adjustable Beds (Most beds Since 2000-motors must be 24v) -Used for a lost/broken or discontinued remote. Controls Head Up/Down & Foot Up/Down (adjustablebedremotes.com)

And finally, it’s important to note that one control box is required per bed. If you have a split king which is essentially two bases pushed up side-by-side, you would need two of these kits if you no longer have any working remote.
